Description
Features
- Particularly flat 10” / 250 mm high excursion woofer with extremely stiff sandwich paper cone
- Voice coil impedance configurable via connection terminal – 2 x 2 Ohms, 1 x 4 Ohms or 1 x 1 Ohm
- Downfire enclosure technology for perfect protection of the speaker and ideal bass dispersion in the vehicle

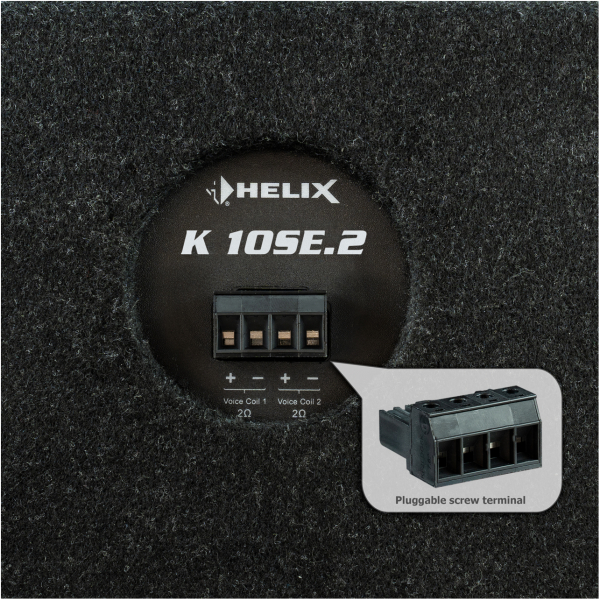

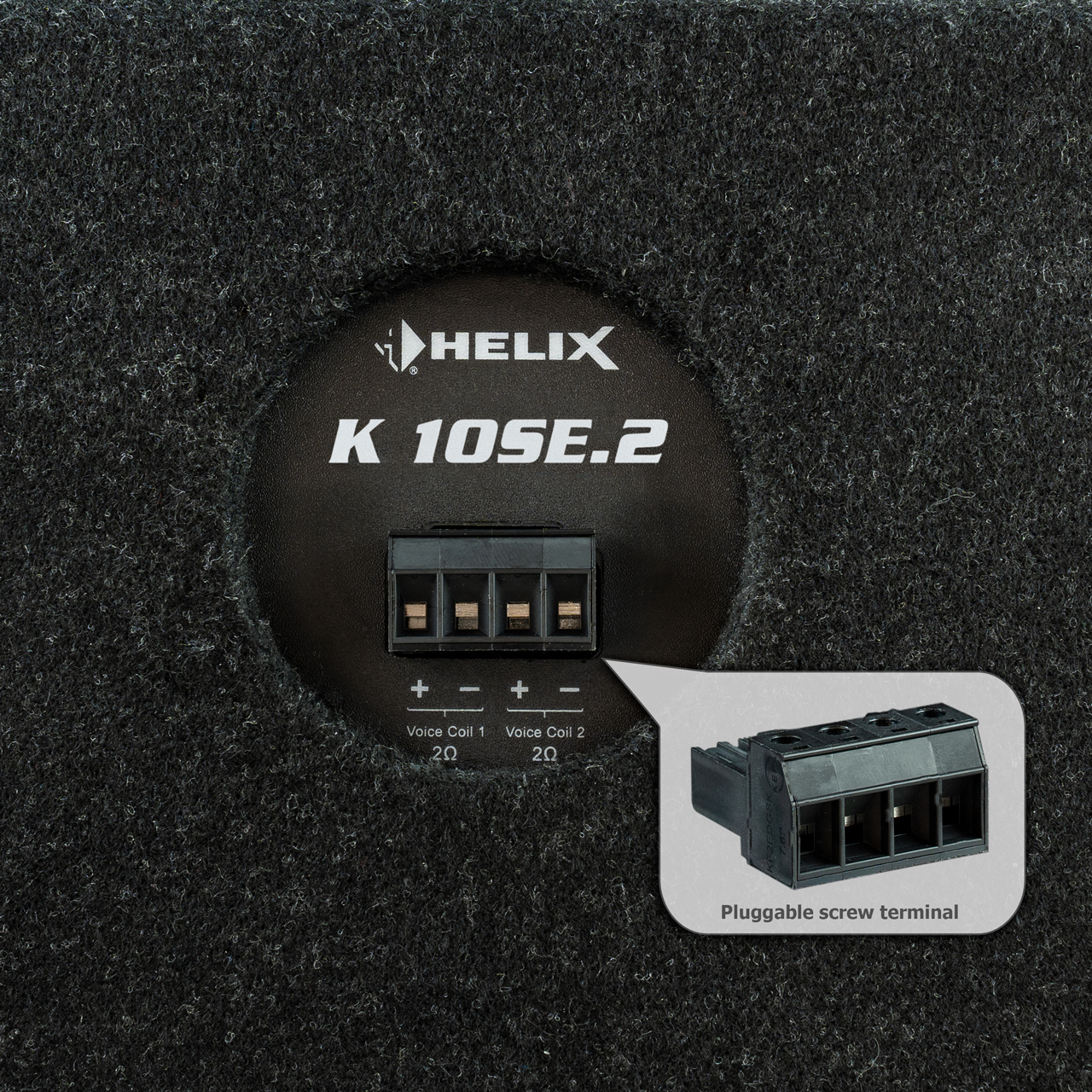

- Pluggable screw terminal for a quick and safe installation or removal

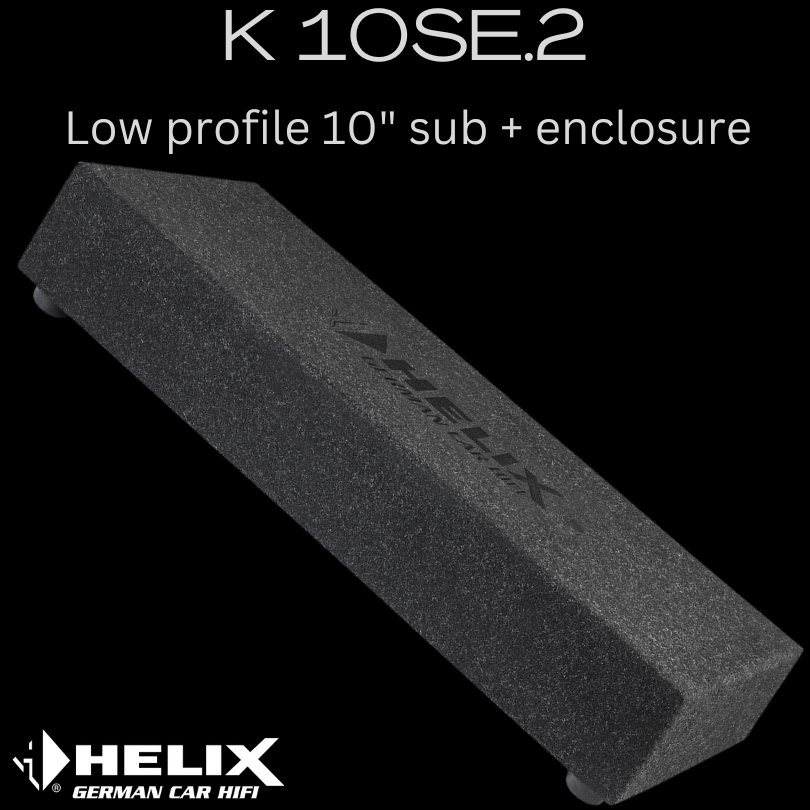

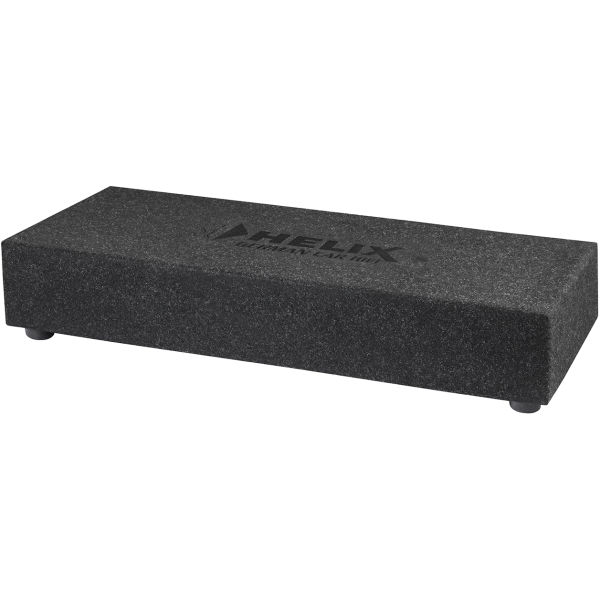

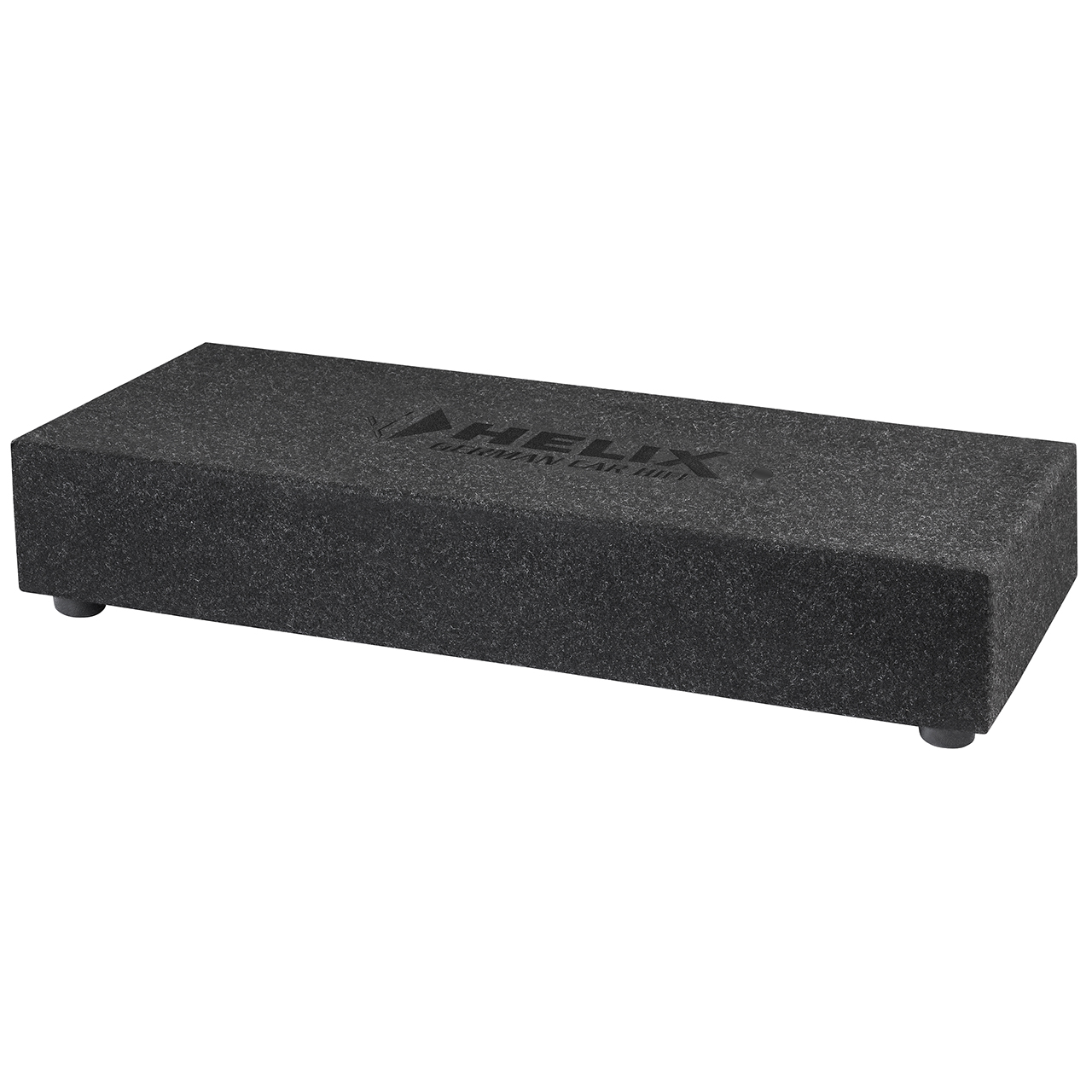

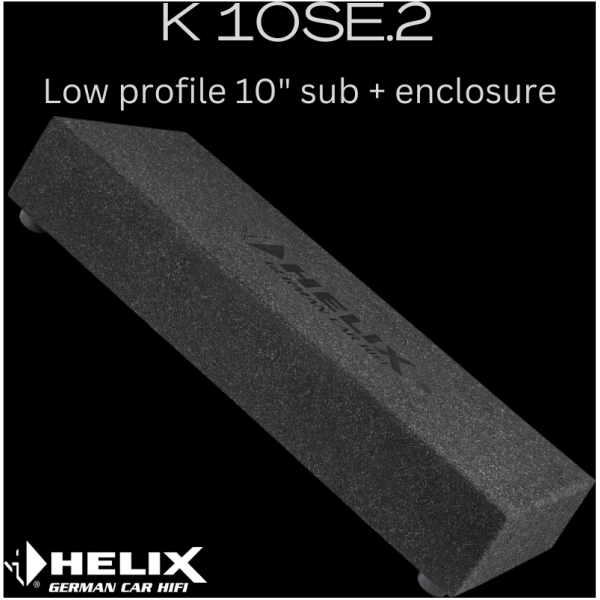

- Extremely shallow and space-saving vented enclosure
Technical data
| Power RMS / max. | P | 300 / 600 Watts |
| Impedance | z | 2 x 2 Ω / 1 x 4 Ω / 1 x 1 Ω |
| Max. linear excursion | Xmax | +/- 6.0 mm |
| Port tuning frequency | Fb | 37 Hz |
| Sensitivity 1 W / 1 m | SPL | 88 dB |
| Dimensions (H x W x D) | 132 x 725 x 350 mm / 5,2 x 28,5 x 13,8“ |
|
| Recommended DSP settings | recommended “self-define” highpass filter with 37 Hz cut-off frequency and Q = 1.2 additional EQ filter 95 Hz / Q = 0.7 / -3 dB |
