Description
Features

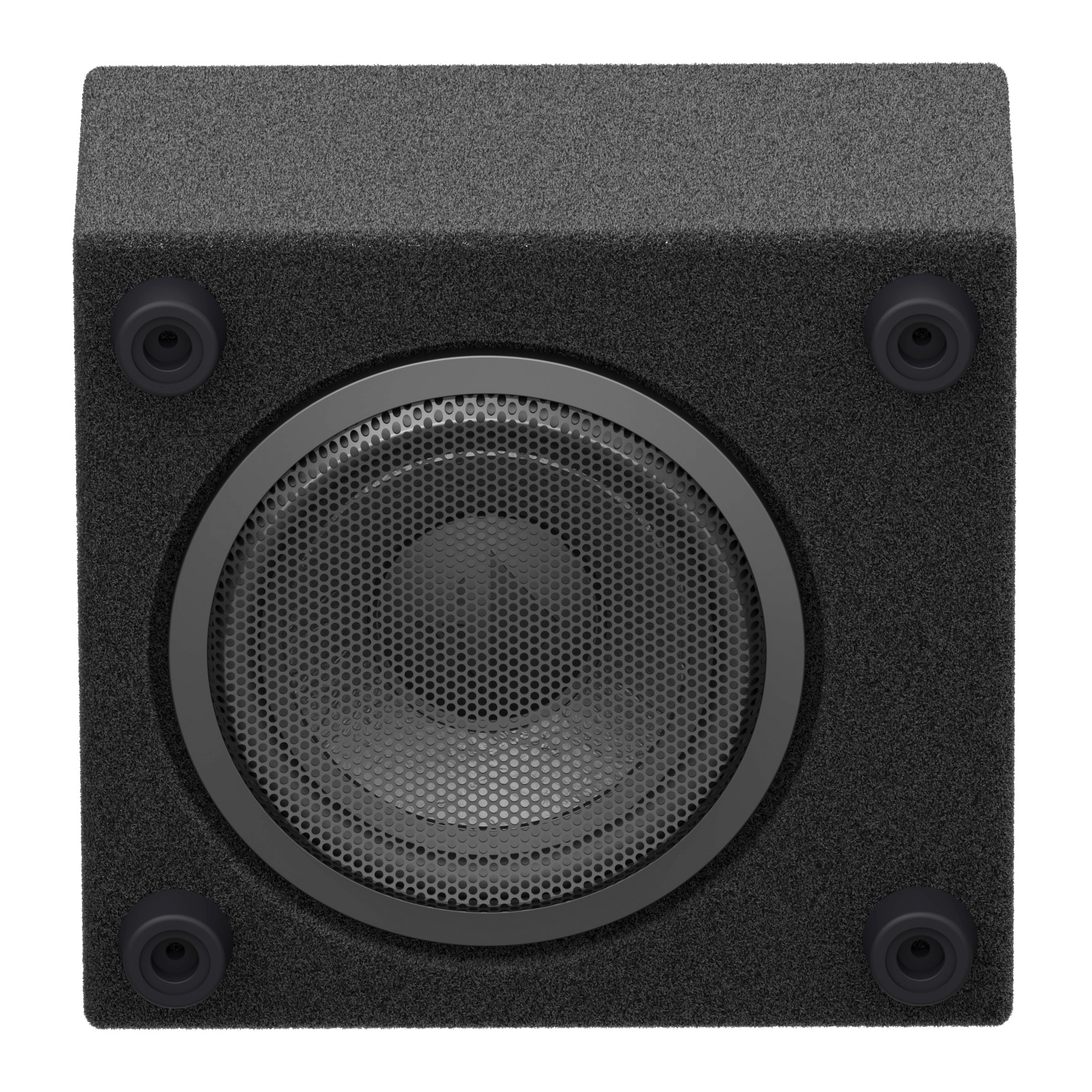

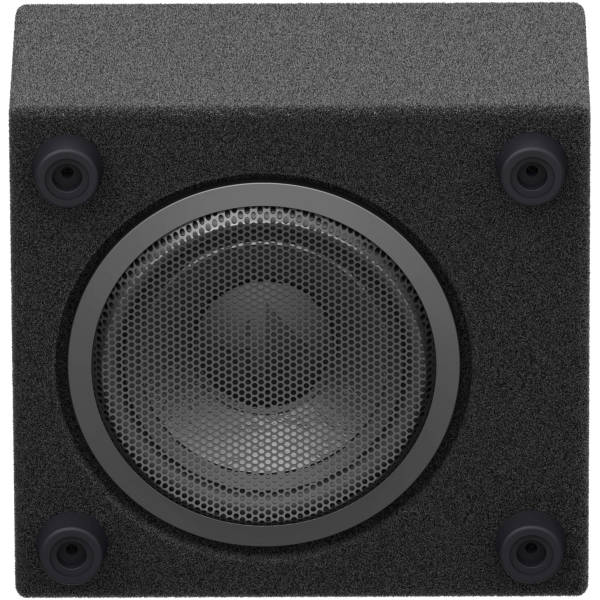

- Downfire enclosure for ideal bass dispersion in the vehicle and perfect protection of the speaker

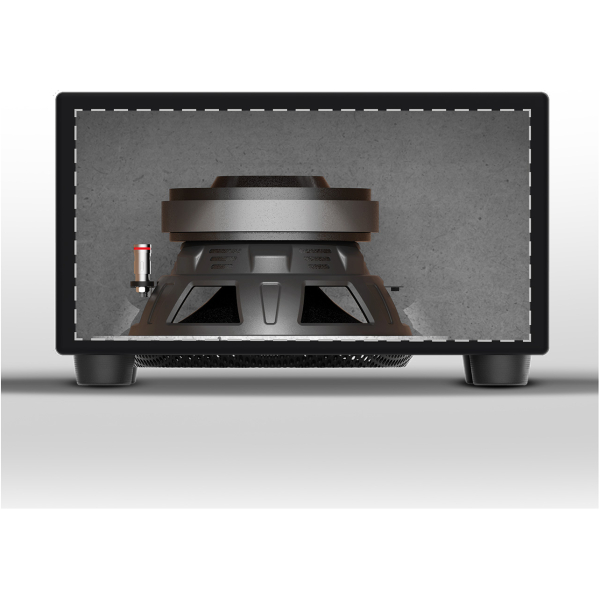

- Compact ported enclosure design ensures high sound pressures and allows space-saving integration in the vehicle
- Equipped with one powerful 200 mm / 8” subwoofer with hand-scooped paper cone for rich, deep bass
- Chassis with 1 x 2 Ohms single voice coil for maximum power output of the amplifier

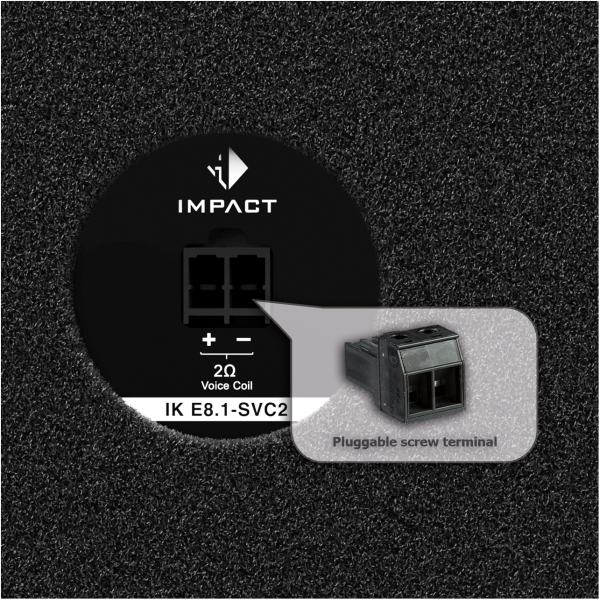

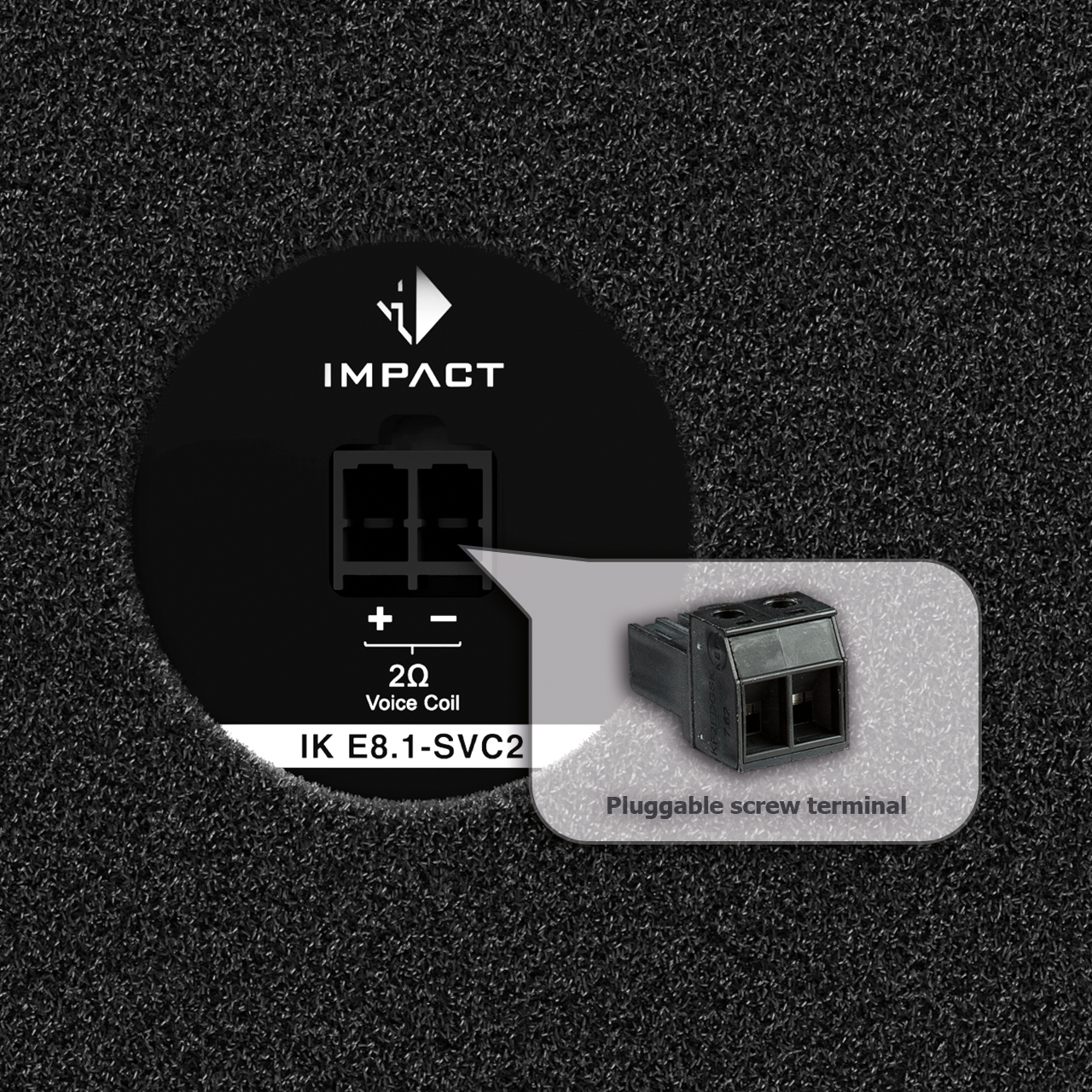

- Pluggable screw terminal for quick and safe installation and removal
- Feet with Velcro tape for a secure stand in the vehicle

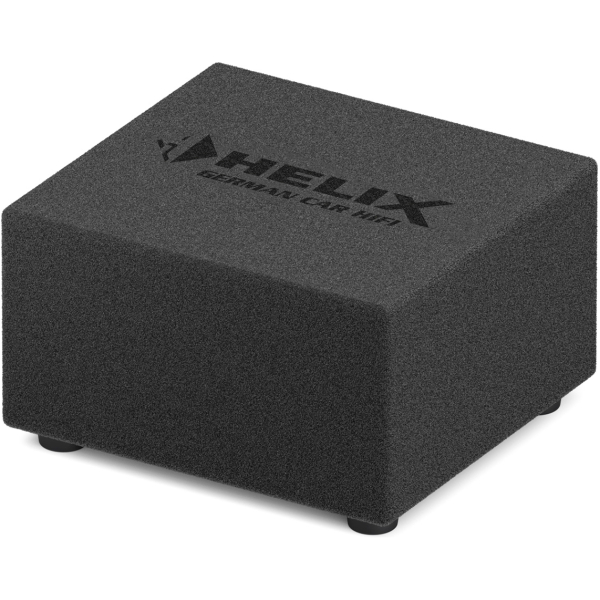

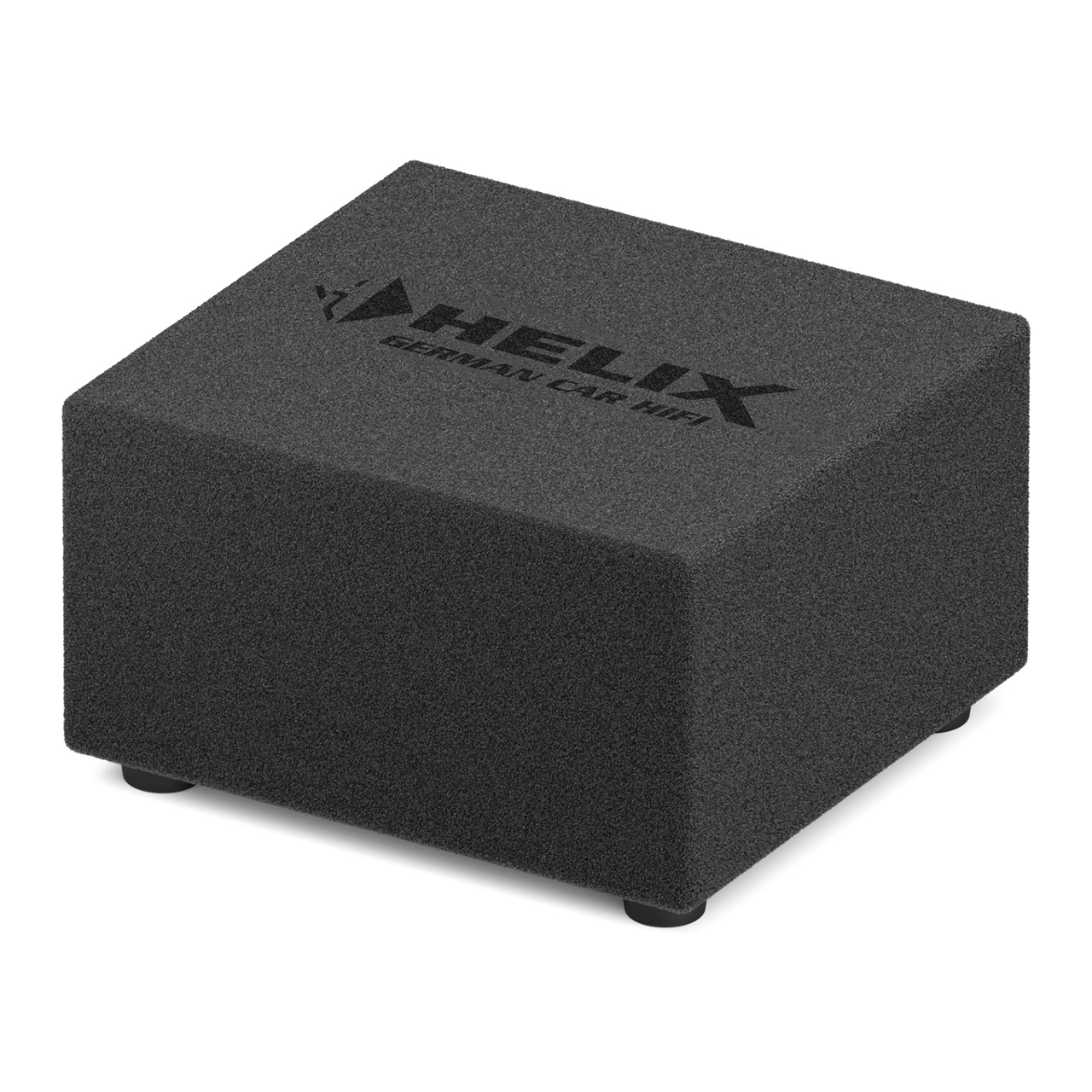

- Sturdy carpet surface with embroidered HELIX logo
Technical data
| Power handling RMS | P | 300 Watts |
| Recommended amplifier power | RMS | 150 – 300 Watts |
| Impedance | z | 1 x 2 Ω |
| Max. linear excursion | Xmax | +/- 8.0 mm |
| Port tuning frequency | Fb | 43 Hz |
| Sensitivity |
SPL | 91 dB @ 2.83V / 1m 85 dB @ 1W / 1m |
| Dimensions (H x W x D) | 184 x 310 x 285 mm 7.2 x 12.2 x 11.2″ |
|
| Integrated subwoofer chassis | HELIX IK W8-SVC2 | |
| Recommended DSP settings | “Self-define” highpass 44 Hz / Q = 1.6; EQ filter: 115 Hz / Q = 0.9 / -3.5 dB |
