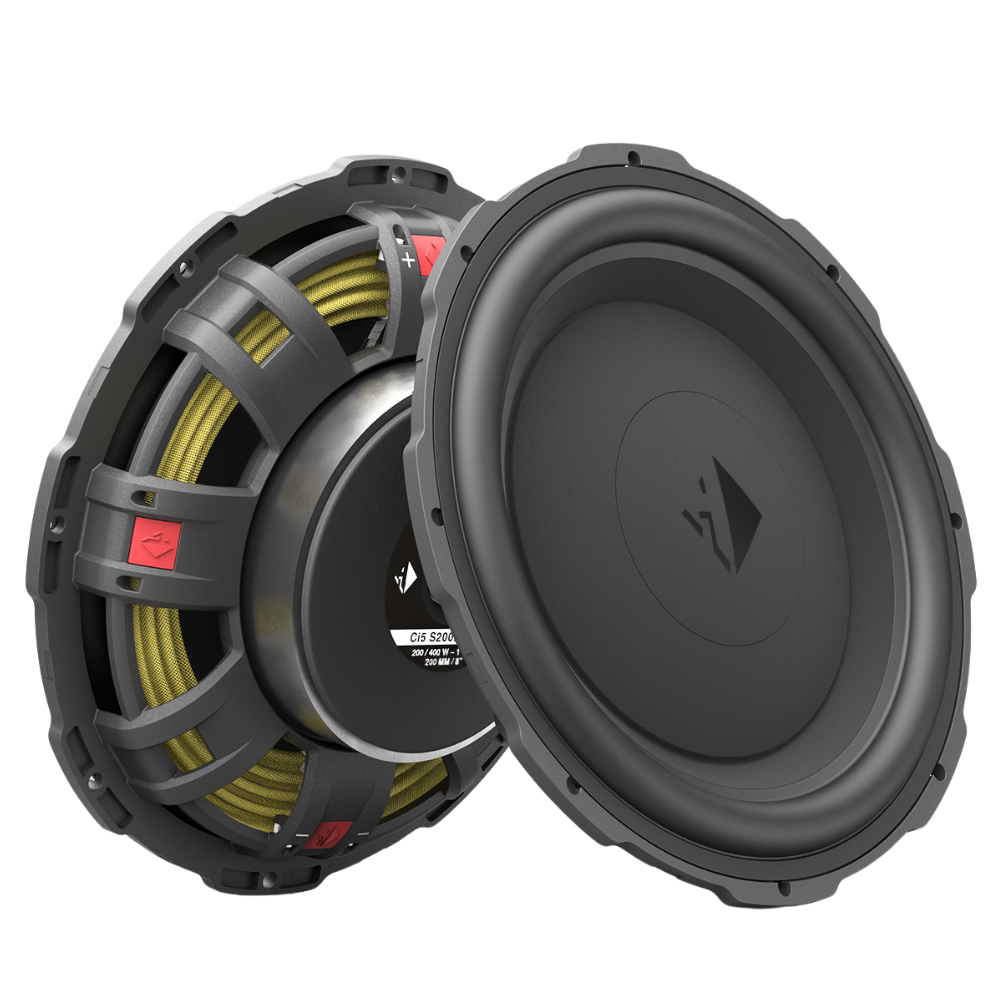

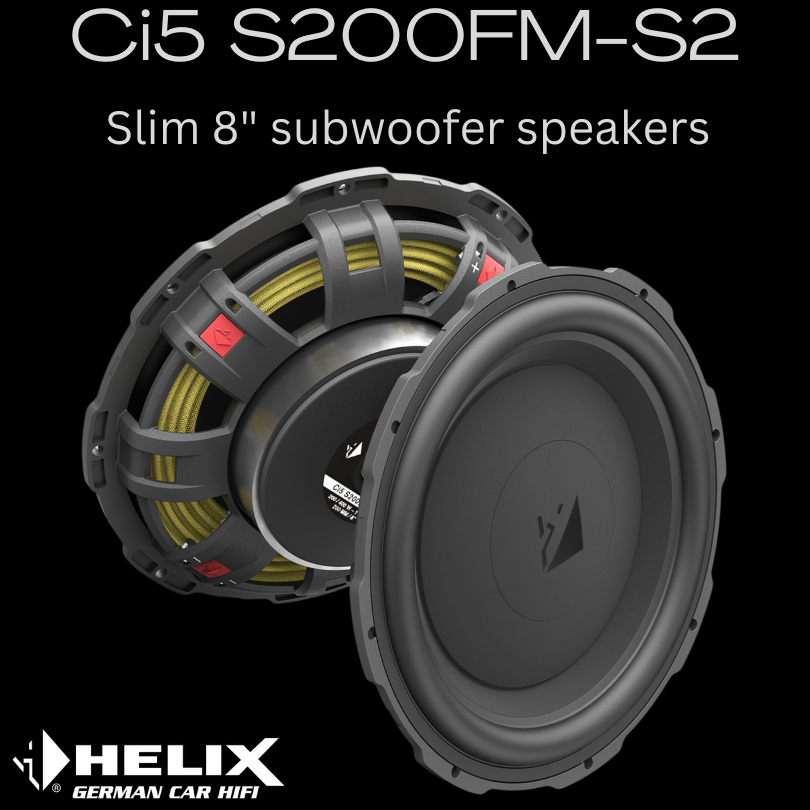

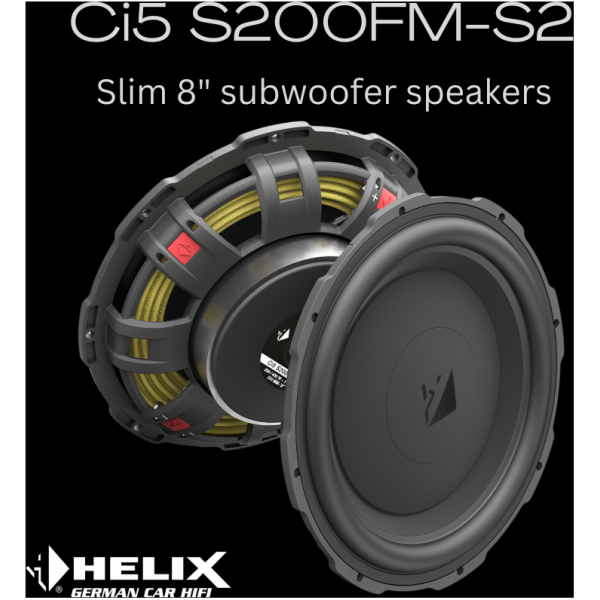

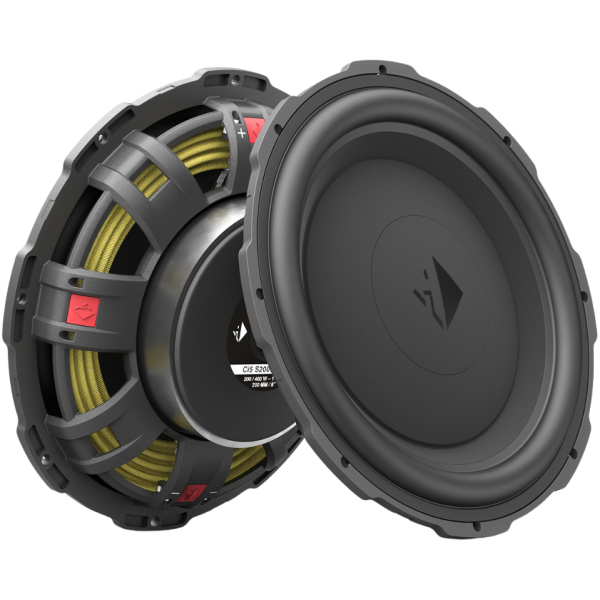

Description
Features
- Exceptional cone excursion – ensures high sound pressure levels and impressive low-frequency reproduction
- Hybrid flat woofer concept – a perfect balance between a powerful subwoofer and a mid-woofer driver that covers a frequency range from 25 to 500 Hz
- Chassis with 1 x 2 Ohms single voice coil for maximum power output of the amplifier

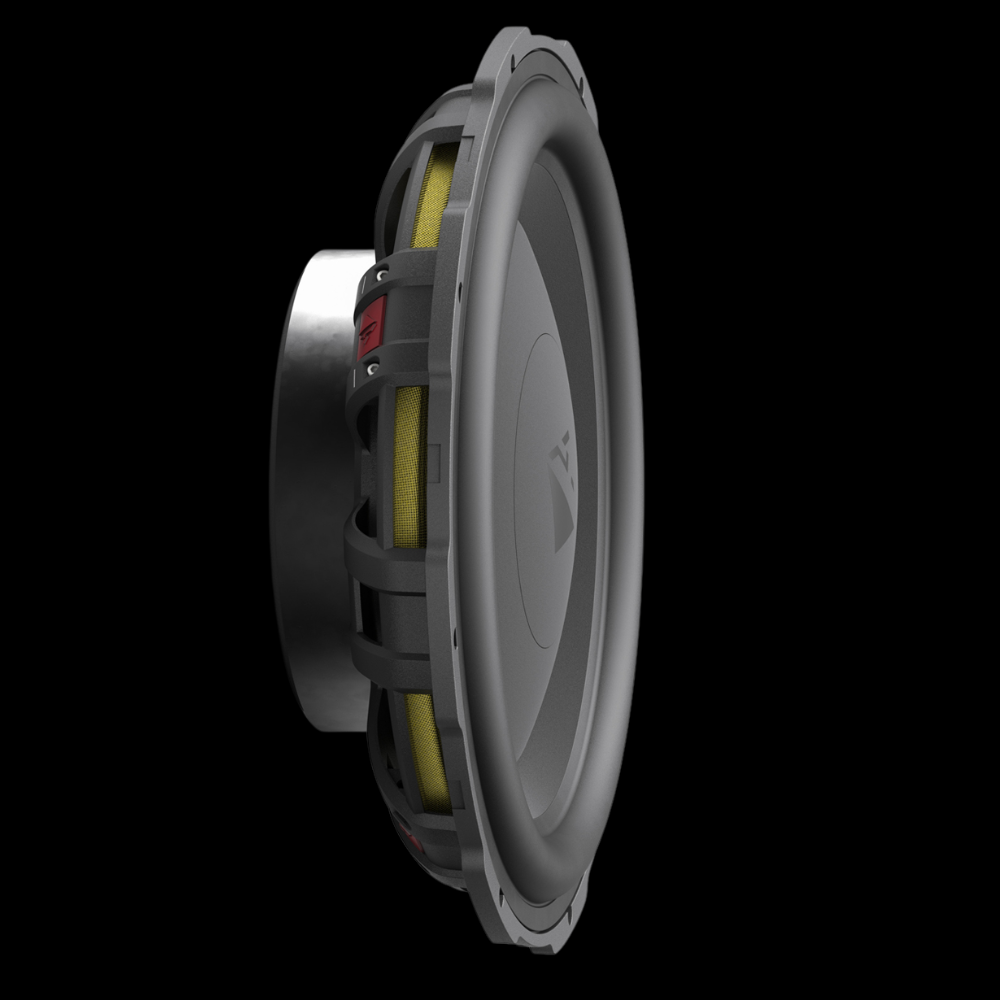

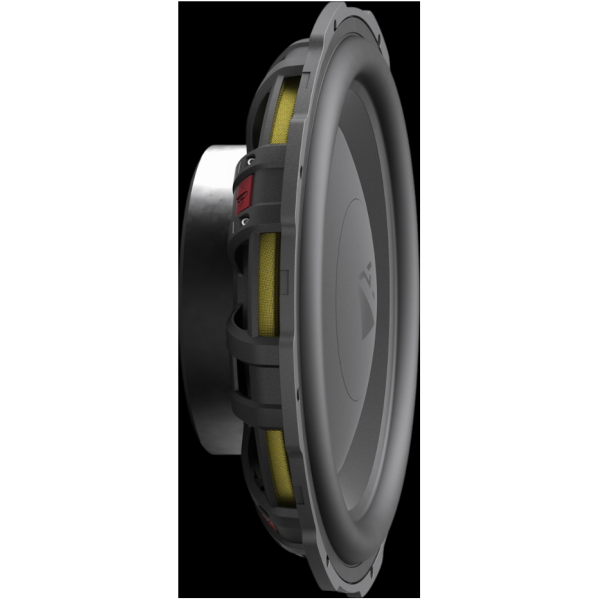

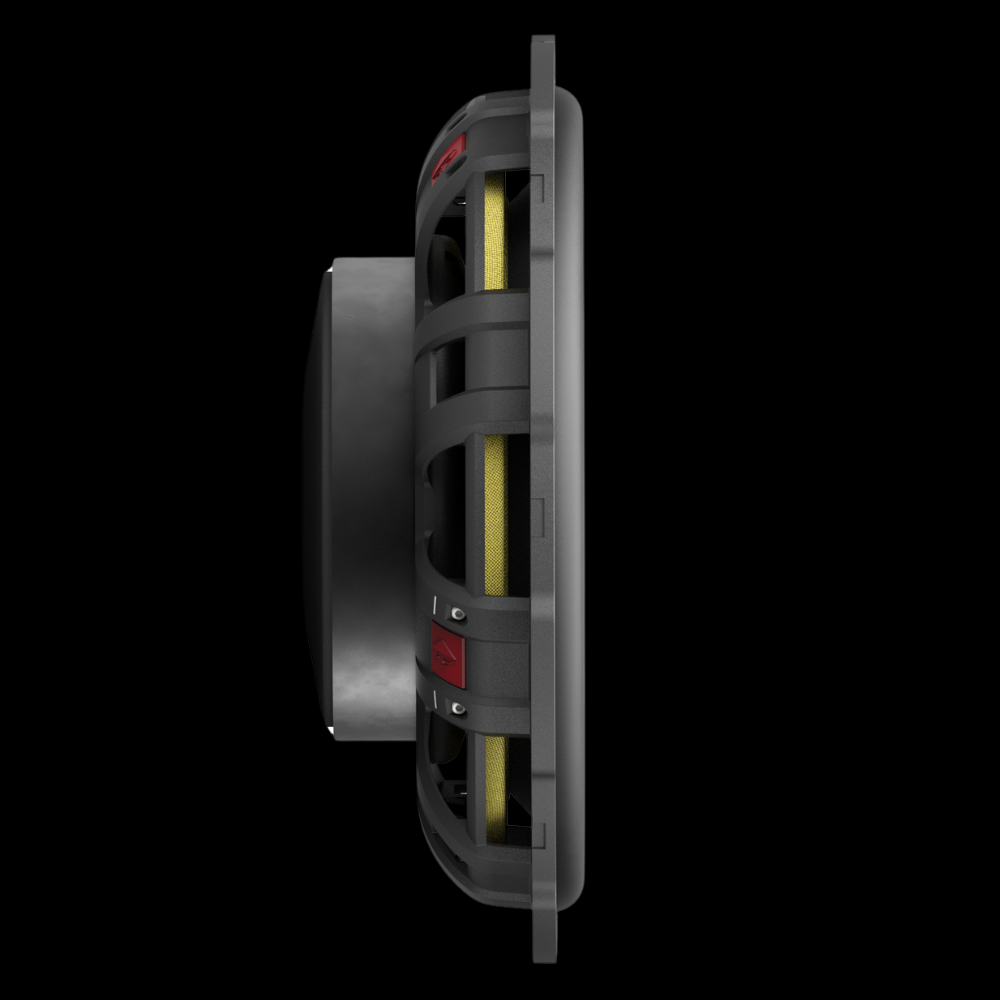

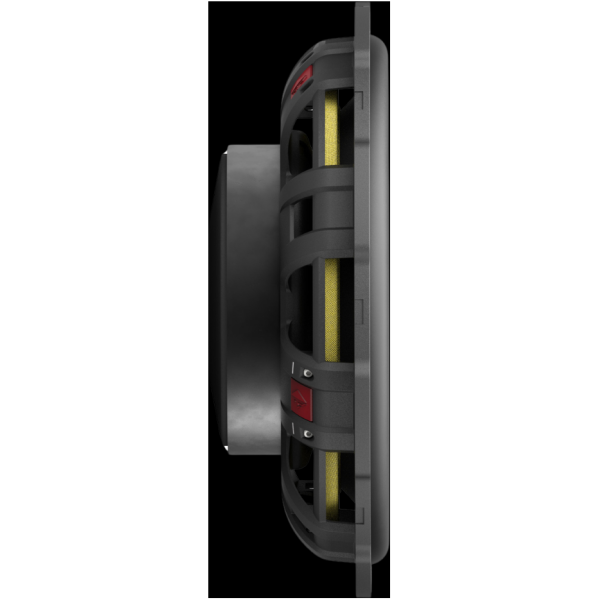

- Minimum installation depth – an innovative basket design with only 47 mm installation depth for the use in restricted mounting spaces
- Compact dimensions with maximum performance – despite the small outer diameter, this woofer comes with the same cone area known from typical 200 mm chassis
- Lightweight polypropylene cone which provides essential stiffness for phenomenal sound performance
- High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimized ringing
- Powerful magnet system for high efficiency and optimum impulse response
- Perfect for difficult applications – e.g. can be installed under the seats in various BMW models or as front subwoofer in Mercedes cars
Comes as a pair
Technical data
| Power handling RMS / Max. | P |
200 / 400 Watts |
| Impedance | Z | 1 x 2 Ω |
| DC resistance | Re | 1.8 Ω |
| Frequency response | 25 Hz – 500 Hz | |
| Resonance frequency | Fs | 47 Hz |
| Mechanical Q factor | Qms | 9.12 |
| Electrical Q factor | Qes | 0.79 |
| Total Q factor | Qts | 0.73 |
| Compliance | Cms | 297 µm/N |
| Equivalent air volume | Vas | 15.7 L |
| Force factor | B*I | 5.1 Tm |
| Sensitivity | SPL | 92 dB @ 2.83 V / 1m 86 dB @ 1W / 1m |
| Cone area | Sd | 194 cm² |
| Moving mass | Mms | 38 g |
| Cone material | Injected polypropylene | |
| Mechanical resistance | Rms | 1.29 kg/s |
| Voice coil diameter | ø | 38 mm |
| Voice coil winding height | 20.6 mm | |
| Max. linear excursion | Xmax | +/- 7.8 mm |
| Outer diameter | ø | 195 mm / 7.68″ |
| Installation diameter | ø | 173.5 mm / 6.83″ |
| Installation depth | 47.0 mm / 1.85″ |
