Description
Features

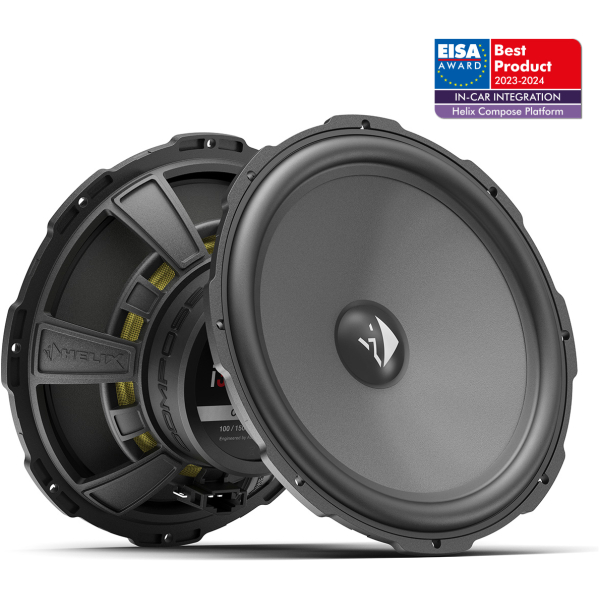

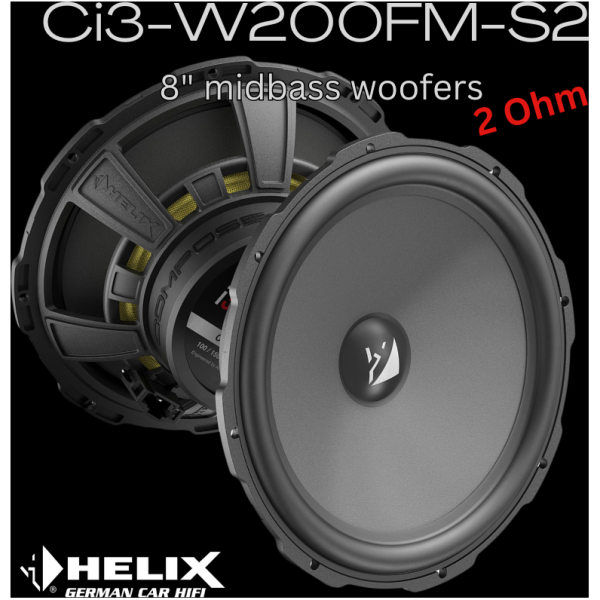

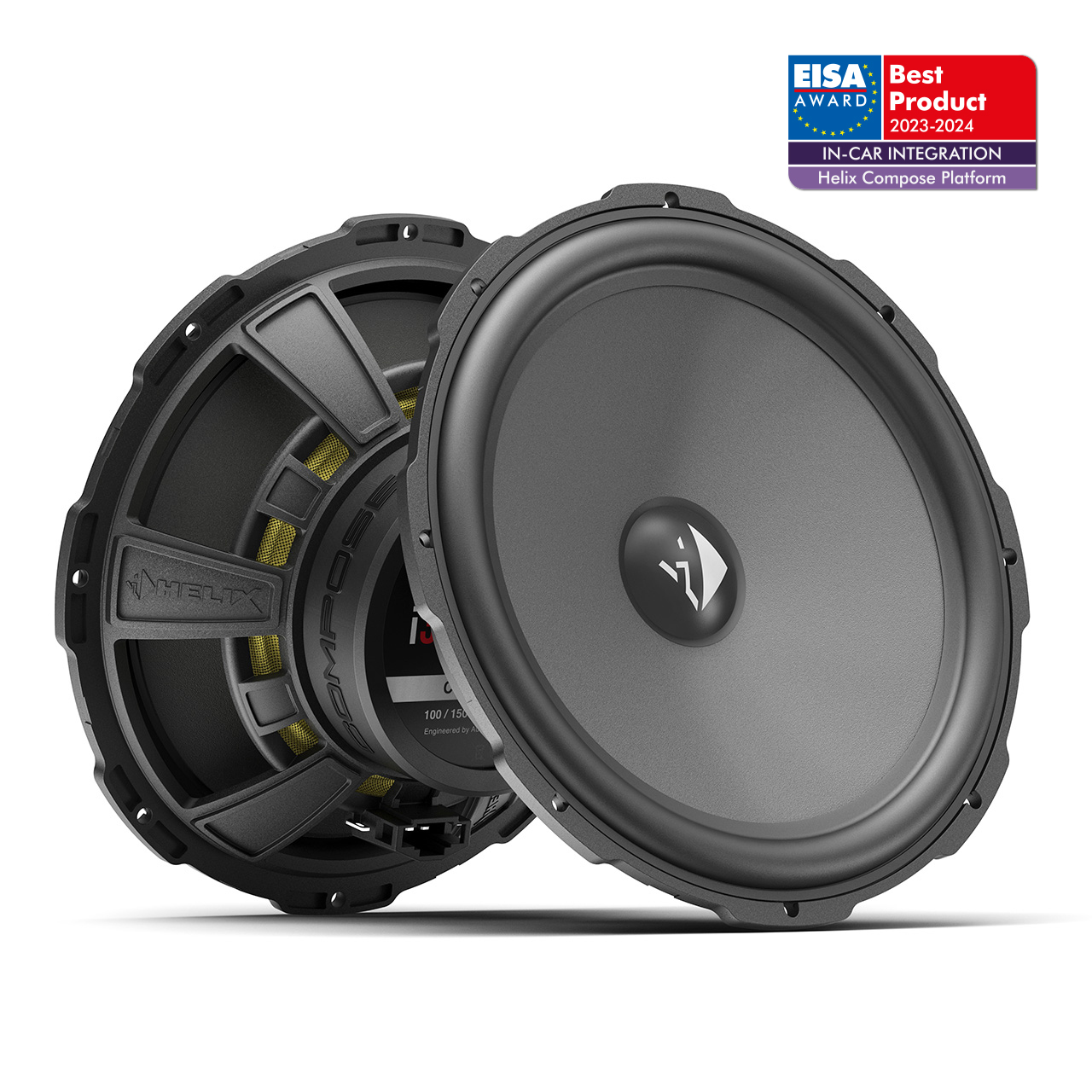

- 8” / 200 mm performance woofer which combines outstanding sound quality with versatile physical integration options
- High efficiency and 2 Ohms technology for maximum power output of the amplifier
- Unique Cenosphere coated paper cone for precise and detailed sound reproduction
- High-tech polymer composite basket reinforced with glass beads for enormous rigidity and minimised ringing
- Specially shaped rubber surround for high linear cone excursion
- Polyurethane dustcap for optimised frequency response in the upper midrange area
- 1” / 25 mm voice coil ensures high power handling
- Compact dimensions with maximum performance – despite the small outer diameter, this woofer comes with the same cone area known from typical 200 mm chassis
- Powerful magnet system for high efficiency and optimum impulse response
- Universal mounting ring with grille included in delivery
Technical data
| Power handling RMS / max. | 100 / 150 Watts | |
| Impedance | 2 Ω | |
| DC resistance | 1.8 Ω | |
| Frequency response | 50 Hz – 3,000 Hz | |
| Resonance frequency | 72 Hz | |
| Mechanical Q factor | 4.56 | |
| Electrical Q factor | 1.09 | |
| Total Q factor | 0.88 | |
| Compliance | 230 µm/N | |
| Equivalent air volume | 14.5 L | |
| Force factor | 4.0 Tm | |
| Sensitivity | 96 dB @ 2.83 V / 1m 90 dB @ 1W / 1m |
|
| Cone area | 214 cm² | |
| Moving mass | 20.8 g | |
| Cone material | Paper with Cenosphere coating | |
| Mechanical resistance | 2.07 kg/s | |
| Voice coil diameter | 25 mm | |
| Voice coil winding height | 11.9 mm | |
| Max. linear excursion | +/- 4.0 mm | |
| Outer diameter | 195 mm | |
| Outer diameter with universal mounting ring | 208.9 mm | |
| Installation diameter | 173.5 mm | |
| Installation depth | 63.7 mm |
